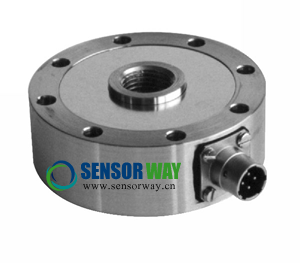

- FN3050拉壓力傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/17
Applications: Process Control Equipment, Regulation Load Cell, Robotics and Effectors, Laboratory and Research, Dedicated to Low and Medium Quantity Volume
Industries: General Industry
Description: The rugged FN3050 load cell is highly suited for process industry and test bench applications. Dimensions are identical in standard ranges from 0-20 to 0-4klb so during testing the sensor can be interchanged for another of a different range without mechanical modifications. The sensor design minimizes transverse effects. For high-level output a model with integrated amplifier is available as are numerous other options. With many years of experience as a designer and manufacturer of sensors, Measurement-Specialties often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.
Features:
Full Scale Range: 0 - 100N to 0 - 20kN [20lb to 4klbf]
Tension and Compression
Accuracy: 0.1% F.S.
Optional: Tension Pull Plate, Load Button
Version with Mechanical Stops
High Level Output Model with Integrated Amplifier
典型應用: 過程控制設備，校準，機器人，實驗室和研究機構
行業: 工業控制
產品描述:
耐用的FN3050力傳感器非常適用于過程控制和測試臺等領域。標準量程從0-20 到 0-4klb，不同量程產品尺寸相同，測試過程中無需更改結構便可更換不同量程產品。傳感器的特殊結構將橫向效應減小到最低�？蛇x放大輸出。作為擁有多年經驗的傳感器設計和制造商，MEAS常常與客戶合作，按要求定制適合特殊用途和測試環境的傳感器。同時，我們也根據客戶需要提供成套系統。配套元件（傳感器，電源，放大器和數顯系統）配置統一，經過校正，可供客戶立即使用。
特點:
量程：0 - 100N 到 0 - 20kN [20lb 到 4klbf]
拉力和壓力測量
精度：0.1% F.S.
可選：拉力牽引板，紐扣式壓力
帶機械限位
可選放大輸出
FN3050力傳感器多技術參數及規格書下載請瀏覽：http://www.friscolifepubs.com/sensors/576.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
